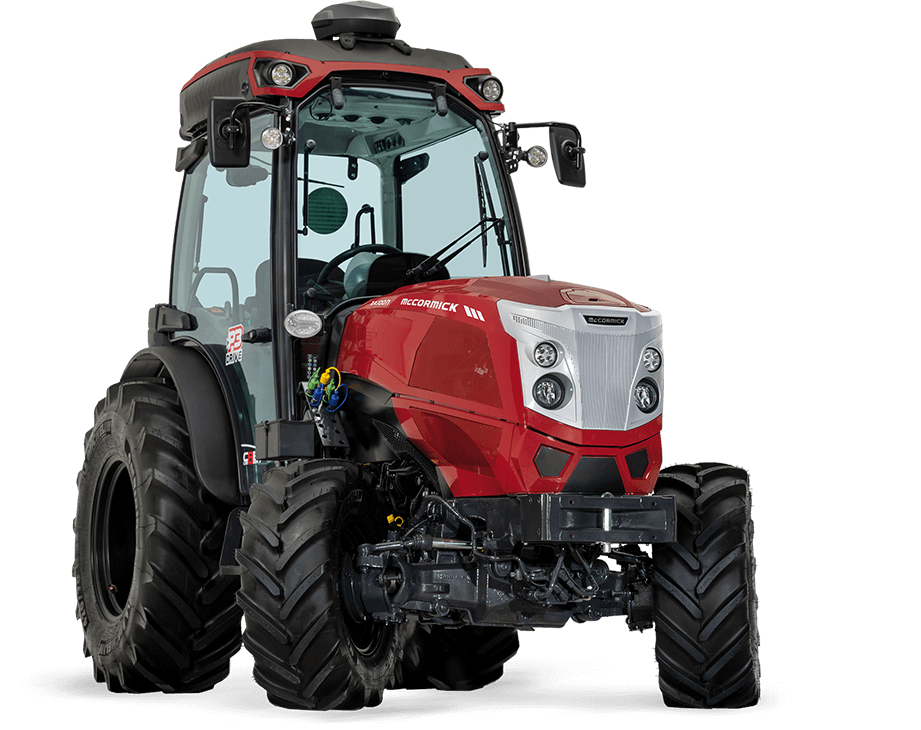

X4F CAB

TECHNOLOGY \\\ COMFORT \\\ VERSATILITY

Engine Cyl / L 4 / 2.9

Power HP 75 / 90 / 95 / 102 / 112

Transmission P3-Drive / XtraShift / Power Four

Configure X4F CAB Download the Brochure

Comfort

› Four-post cab design for full panoramic visibility.

› Cab suspension on Hydro-Silent Blocks or spring-loaded shock absorbers.

› Top-class heat and sound insulation.

› Flat-deck platform for maximum operating comfort.

› Driving position with air-suspended seat and tilt-adjustable telescopic steering wheel.

› Automotive-grade fit and finish and ergonomically arranged controls.
Features

› Deutz TCD Stage V 4-cylinder engine with 2.9-litre displacement and power ratings from 75 to 112 hp.

› Electronic rear hitch with lifting capacity of 2,700 kg. Lifting capacity for XL version: 3,400 kg.

› ELS – Ergonomic Lift System, for easier and faster use of the rear hitch.

› Category 4 activated carbon filter protection for safe handling of pesticides.
Efficiency

› Exclusive Full LED driving and working light configuration.

› Maintenance intervals extended to 1,000 hours.

› Reverse Power Shuttle, electrohydraulic forward/reverse shuttle with electronically modulated shuttle response.

› Smart APS – Auto PowerShift: automatic gear selection for best performance-to-fuel-consumption ratio.

› Stop & Action, for a smoother and safer driving experience.
Versatility

› Speed Four transmission: 4 speeds and 3 ranges with either synchro or power shuttle, or 4 ranges with creeper. Available options: Hi-Lo Power Four, HML XtraShift and HML P3-Drive with robotised gear and speed control.

› Suspended front axle available for F, N and XL versions.

› Highly configurable open-centre hydraulic system: dual pump with 58 + 30 l/min flow rate or triple pump with 30 + 58 + 36 l/min, with 88 l/min being supplied to the rear hitch and remotes.

› Wide choice of tyres. Reinforced Waffle rims are available to support higher loads during work and provide more stability during transport.
Connectivity

› ISOBUS, ADS ready for satellite-assisted guidance, DSM display, Fleet & Remote Diagnostics Management, McCormick Farm, UltraPilot autonomous driving system for row crops.
Productivity

› Premium + trim level: air-suspended swivel seat with multifunction armrest, SmartPilot Plus joystick and DSM high-resolution touch screen display for maximum operator comfort and productivity.
Design

› McCormick Metallic Red: metallic red colour and matt black rims for a unique, aggressive style.

RP5D X4F CAB

X4F CAB
REAPING THE FRUIT OF PRODUCTIVITY

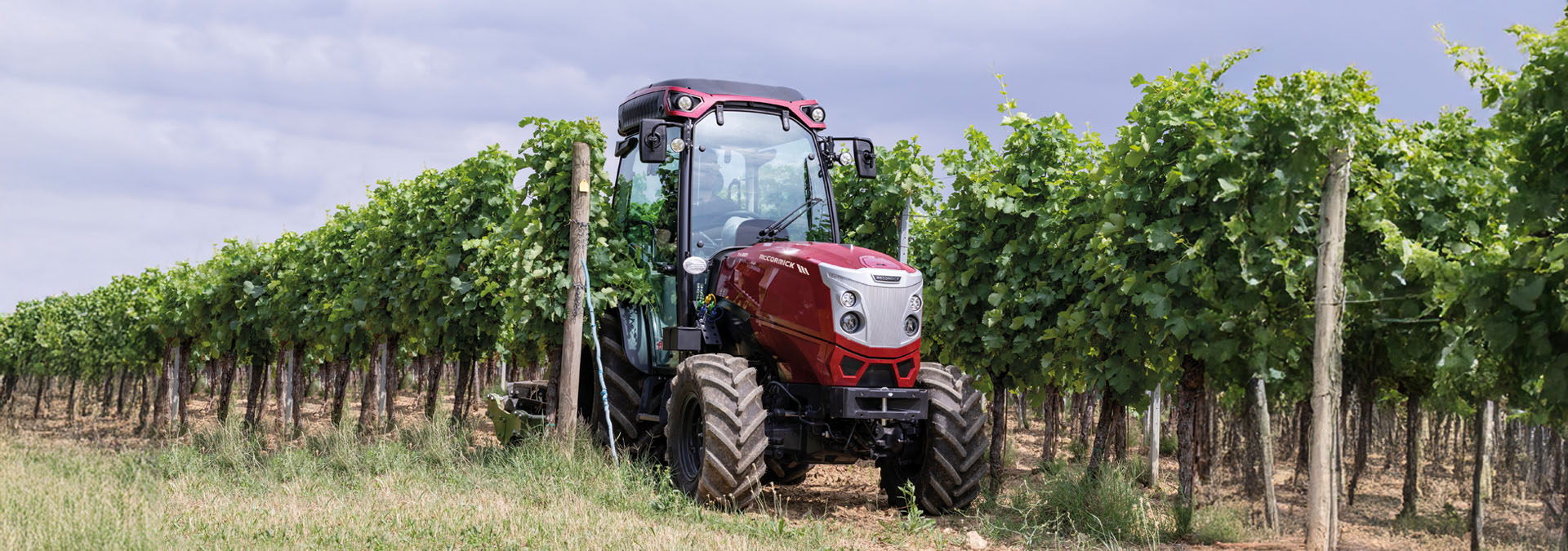

The X4F CAB renews the segment of specialty tractors with top performance in terms of Technology, Comfort and Versatility, offering a true concentrate of innovative solutions that will provide concrete answers to the real needs of farms.

The X4F CAB is immediately recognisable by its design: the sleek, dynamic lines of the bonnet allow the tractor to move easily between the rows and the cab features an automotive-style look and feel. The Metallic Red version, with metallic red paint and matt black rims, embodies the true McCormick spirit. Every detail in the X4F CAB is designed with innovation and uncompromising performance in mind, to deliver class-leading productivity.
