X7 SWB

PERFORMANCE \\\ VERSATILITY \\\ COMFORT

Engine Cyl / L 4 - 6 / 4.5 - 6.7

Power HP 165 / 176

Transmission VT-Drive / P6-Drive

Download the Brochure

Comfort

› Clever Cab: four-post design and +14% glass area.

› Electrohydraulic semiactive cab suspension.

› Internal layout: more room in every direction and maximum ergonomics.

› Heated and ventilated air suspension swivel seat with rotating headrest.

› Multifunction armrest integral with the seat and equipped with ergonomic joystick.

› Steering wheel and dashboard adjustable in tilt and depth.

› Powerful Alpine 7” touch screen radio with DAB+, MP3, Bluetooth, microphone, USB.

› Android Auto and Apple CarPlay.

› Efficient climate control for uniform airflow distribution in all directions.
Specifications

› Turbocharger, intercooler and common rail injection system.

› Power Plus system for additional 10 hp power boost.

› High torque backup.

› Self-supporting engine for nimble and efficient performance.

› HI-eSCR2 system for Stage V emissions compliance.

› Up to 280-litre fuel tank; 46-litre AdBlue tank.
Efficiency

› Front axle with independent suspension system (IFS).

› Full locking differentials for maximum tractive performance.

› Automatic 4WD and differential lock engagement

› Reverse Power Shuttle, for quick and easy forward/reverse shifting.

› Engine Brake function for efficient braking performance.

› 20 adjustable Full LED work lights for maximum visibility.

› Extra-large heated electric rearview mirrors with wide-angle view.

› Coolers open out to allow simple and fast cleaning.
Versatility

› Closed-centre hydraulic system with 160 l/min variable displacement pump.

› Electronic rear hitch with up to 9300 kg lift capacity.

› Front hitch with up to 3500 kg lift capacity as standard.

› Up to 8 electrohydraulic remote valves with one 3-way flow divider.

› Rear 4-speed PTO: 540/540Eco/1000/1000Eco rpm.

› Front PTO: 1000Eco rpm.
Connectivity

› ISOBUS and Precision Steering Management systems.

› Fleet & Remote Diagnostics Management and McCormick Farm, for fleet and farm management.
Productivity

› DSM Plus: DSM Plus: 12” display and 12” dashboard with intuitive functions.

› VT-Drive: continuously variable transmission.

› VT-Drive: 4 programmable speed ranges.

› VT-Drive: controls on the EasyPilot joystick.

› VT-Drive: designed for ultimate simplicity, so operator can focus on the job at hand.

› VT-Drive: reduced fuel consumption and lower operating costs.

› VT-Drive: max speed 50 km/h; min speed 40 m/h.

› P6-Drive: 6 PowerShift speeds and 5 robotised ranges.

› P6-Drive: 54F/27R speeds with creeper; min speed 400 m/h.

› P6-Drive: Smart APS Auto PowerShift for automatic selection of the optimal gear.

› P6-Drive: EasyPilot Joystick: full control of transmission.

› P6-Drive: De-Clutch function for gear shifting without use of the clutch.

› P6-Drive: Stop & Action system integrates the De-Clutch function into the brake pedal.

› P6-Drive: ECO mode for transport operations and Oil-Cut-Off feature for improved fuel economy.
Design

› Clever Cab and boonet: stylish and functional design for enhanced visibility.

› Automotive-style fit and finish with soft-touch materials.

RPD8 X7 SWB

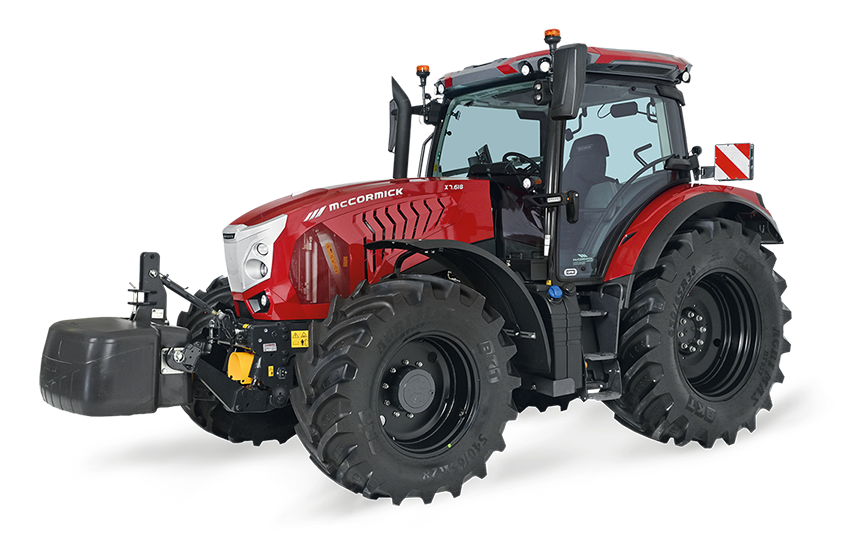

McCORMICK X7 SWB, A PERFECT MIX OF PERFORMANCE, VERSATILITY AND COMFORT

The short-wheelbase X7 SWB tractors deliver a perfect mix of performance, versatility, efficiency and comfort. The X7 SWB range is comprised of four- and six-cylinder models with self-supporting engines. This tractor range is specifically designed for farmers and agricultural contractors looking for a tractor that is sleeker in design and more versatile in use than its long-wheelbase bigger brother, a tractor ideal for spring and autumn field activities in wet soil conditions where weight is critical.

Inspired by the automotive design, the new X7 SWB tractor impresses with its powerful dynamic lines and its spacious cab with ergonomically-designed controls. The tractor can be equipped with up to twenty LED work lights, twelve of which are fitted on the cab roof to provide full all-round visibility in all working conditions.
